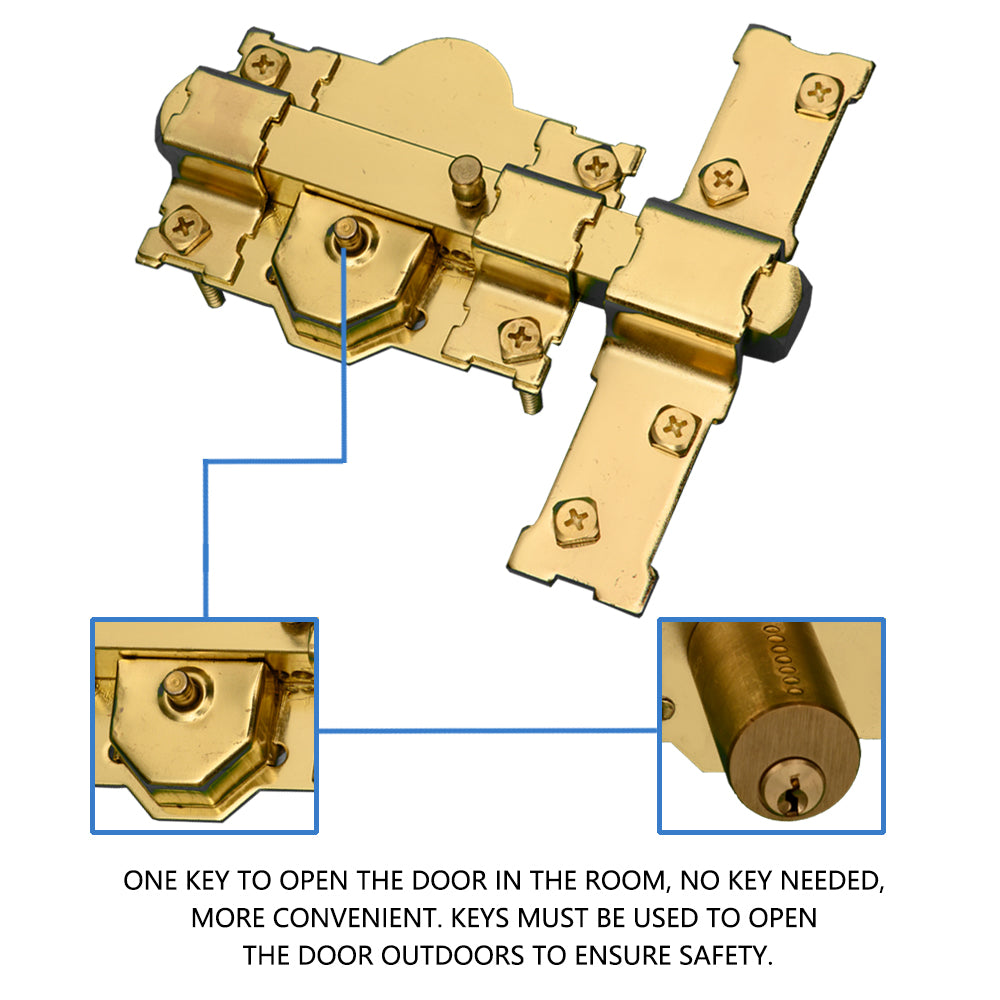

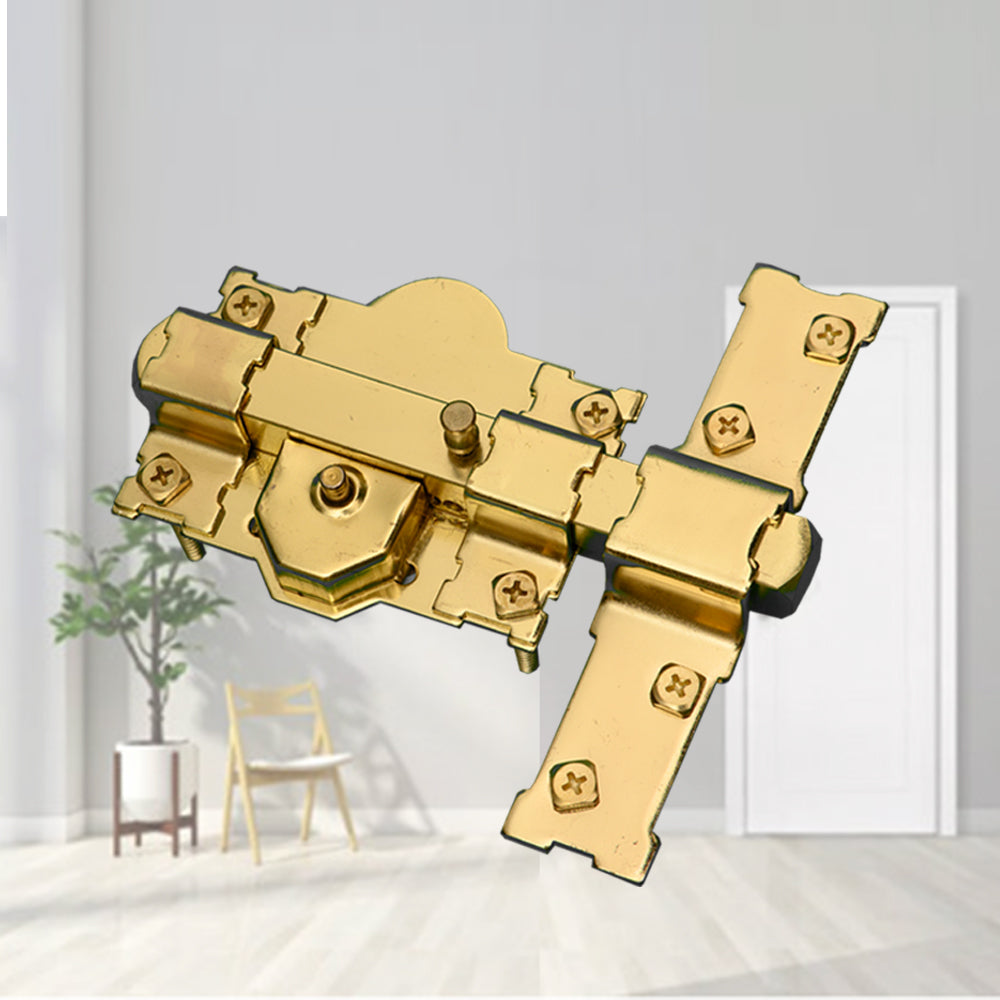

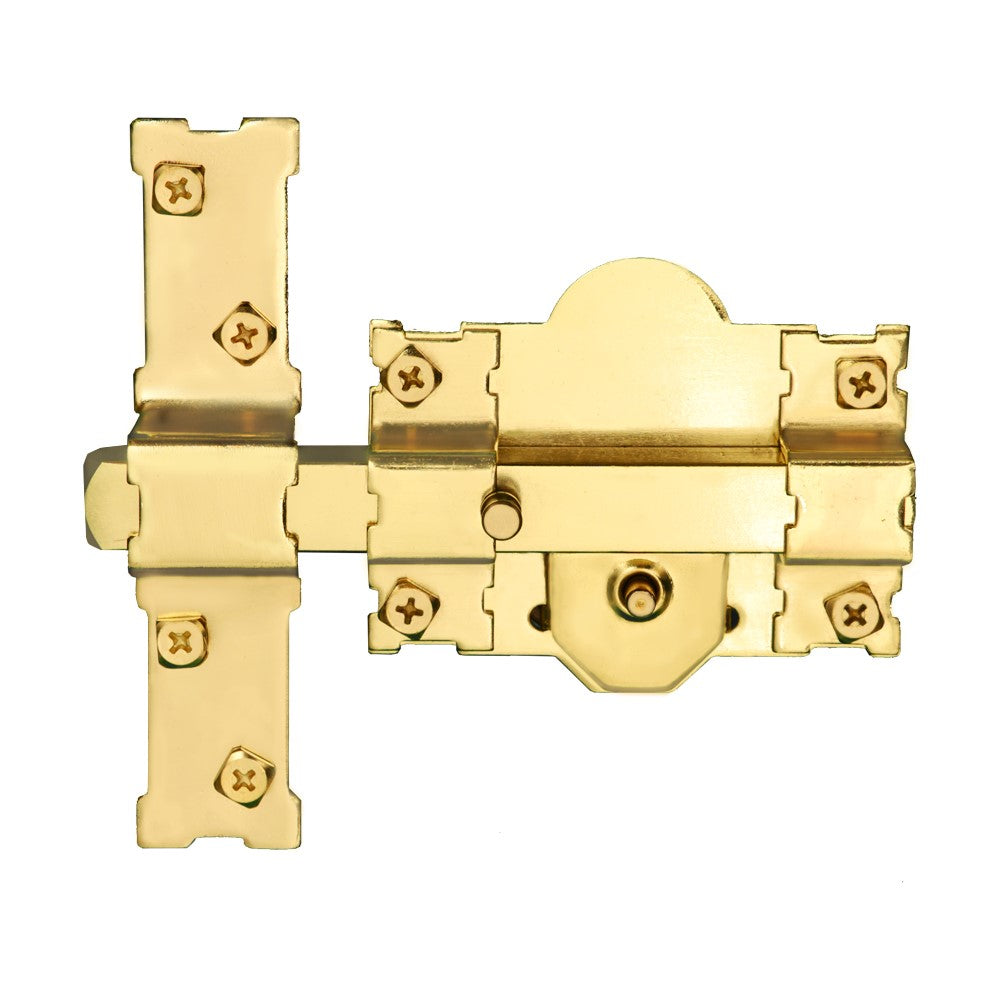

Golden Unilateral 50mm Long Throw Gate Lock 3 Keys Garden Locking

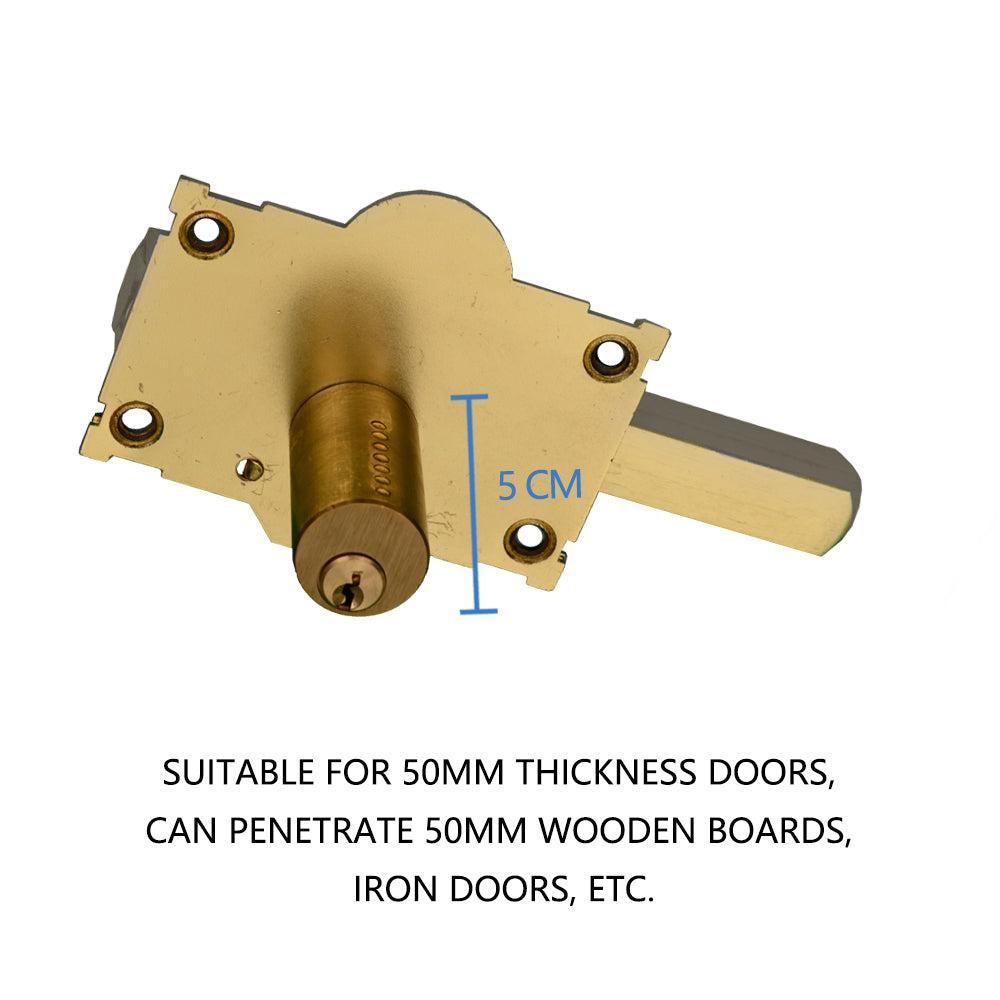

1. [50mm] To suit (50mm) Doors & Gates, long throw.

2. [Durable] Lock Cylinder is Made of Copper —— Long Working Life. Thick screws, double thickening galvanized, more robust than ordinary screws.

3. [Safer] Cays Lock with elongated keep.Higher Security 6 Pin Lock.

4. [Easy] Easy to install and Lock.Lock net weight to 1.2kg, excellent quality.

5. [Three Keys] Three Keys to Suit Need of Large Family.

Brand: Concise Home
Special feature: Concise Home Gold Unilateral 50mm Long Throw Gate Lock 3 Keys Garden Locking
Lock type: Pin Tumbler

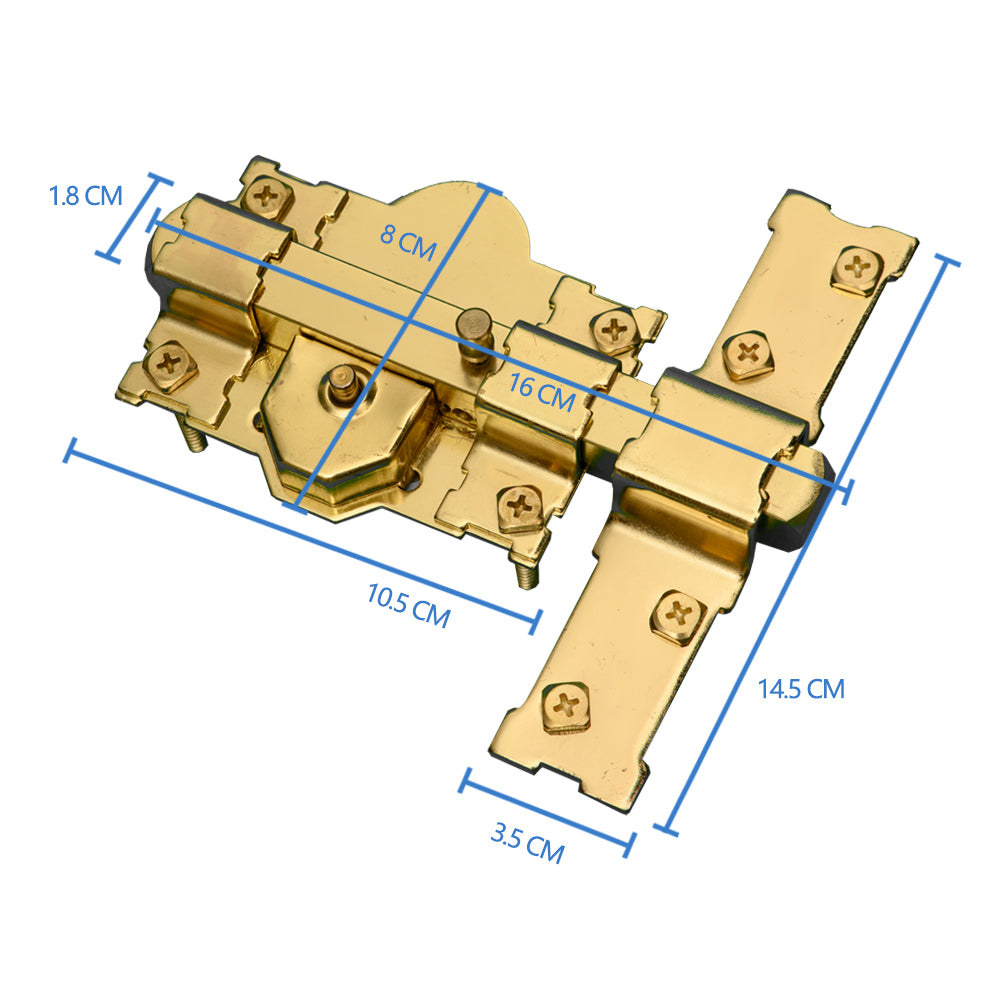

Item dimensions L x W x H: 16 x 8 x 5 centimetres
Material: Copper
Product Dimensions: 16 x 8 x 5 cm
Item weight: ‎1.12 Kilograms
Finish types: ‎Painted
Batteries required: No

‎16 x 8 x 5 cm,
1.12 Kilograms.

1 x Lock Cylinder,
1 x Buckle ,
1 x Ornament Loop ,
3 x Key ,
8 x Screw (5x40mm) ,
4 x Screw (4x20mm).

Step One: The lock should be fitted to the door or gate once it has been hung and all necessary adjustments have been made. The lock body should be mounted inside (secure side) of the gate, with just the barrel showing outside - to prevent any tampering with the lock.

Step Two: Work out the position the lock should be mounted and mark the center of the barrel position on the gate accordingly. The lock must be mounted with the cam holes in the bar facing downwards to avoid water ingress. The lock body should be no less 5mm from the edges of the gate and obviously the throw of the lock needs to reach across to secure the gate. Also Check on the other side of the gate to ensure the hole is in a suitable position.

Step Three: Next drill a 26mm hole in the gate with the auger or flat drill bit. Make sure the hole is drilled level and straight for the best performance of the lock. Drill through until the central point of the drill bit protrudes out on the back and then finish the hole off from the back side to avoid splintering the timber.
