Electric Clothes Dryer
Instruction Manual
Model: CH-50013
A. Manual
Please read this manual carefully before use
To Dear Customer:
Thank you for choosing our multifunction dryers, our clothes dryer is designed to
be simple and easy to use.
Before use: The precautions shown here are to prevent damage to and damage to you or others. Divided into "warning" and "attention" in two parts, both of which are important aspects of security, please be sure to comply.
Warning: Indicates misuse of content that may cause injury,
CAUTION: Indicates that incorrect use may cause damage to the product
B. Precautions when using
1. The main wind machine generates high temperature. Please be careful not to
block the air outlet of the main unit, otherwise the main unit will burn out.
2. the position of the air outlet can not be touched at close distance to prevent burns.
3. if the smell is odorous, burnt, please unplug the plug in time, contact the seller.
4. the total weight of clothes, the weight of water can not exceed 10kg, to prevent drying.
C. Technical Parameters
Voltage: 220V
Frequency: 50Hz
Power: 1 000W
Drying capacity:≤15KGS
Timing time: 3 hours
D. Electrical Schematic
Temperature fuse
DC fan
thermostat
Digital Tube
E. Installation

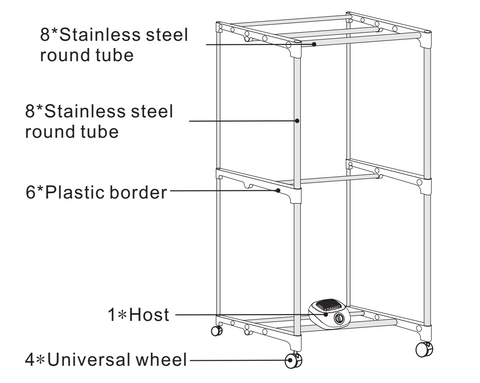

F. Installation Steps

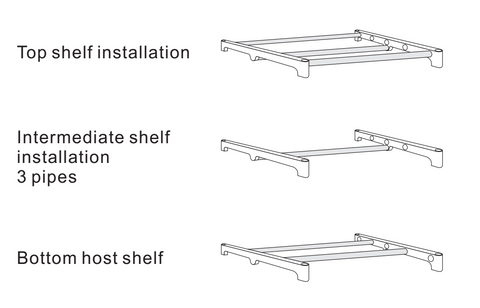

1. The first step is to take out three plastic frames and insert the upper, middle and lower tubes at once.

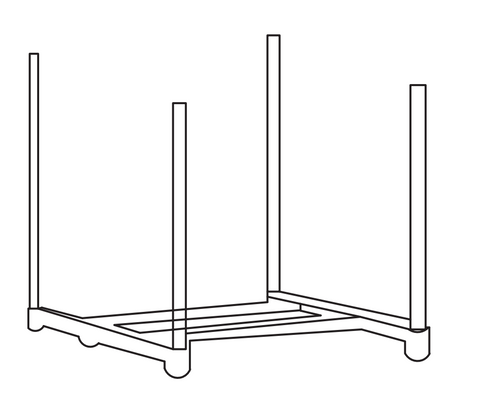

2. The second step is to insert 4 tubes on the bottom shelf.

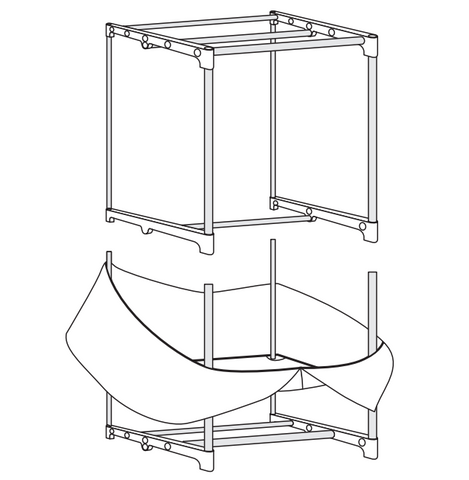

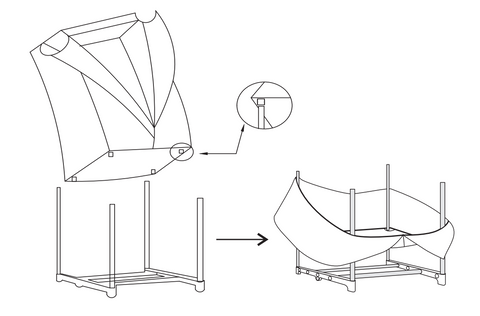

3.The third step is as shown below. Take out the cloth cover, open the zipper, first find the four corners, and put the cloth cover in the tube.
4.In the fourth step, the middle shelf and the top shelf are connected by four tubes.

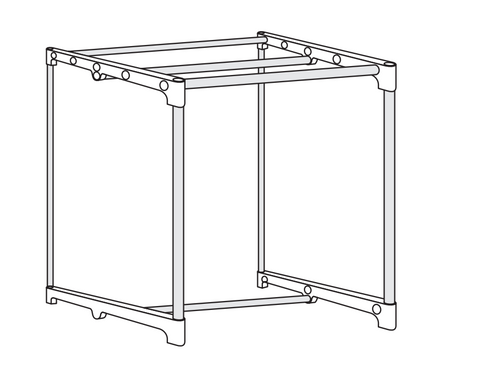

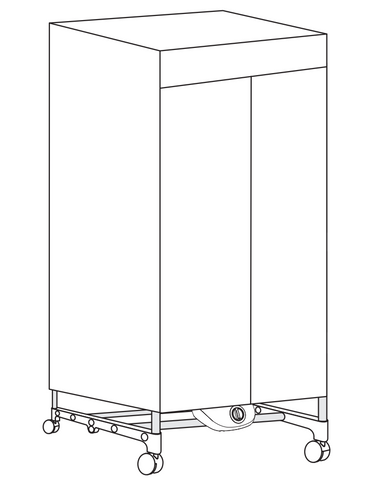

5. Finally, you can connect the three shelves together, pull the cover up, and put all three shelves together.
G. Host operation

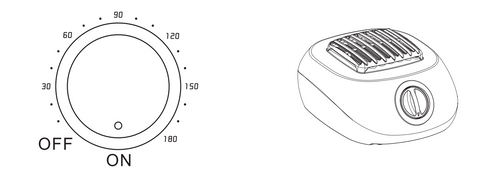

Plug in the plug and turn on the switch. You can adjust the timer yourself according to the amount of clothes.
If you still have any questions, please contact the seller in time. You will be replied to your question within 24 hours.
