Electric Portable Travel Dryer
Instruction Manual
Model: CH-10012/CH20012
A. Manual
Please read this manual carefully before use
To Dear Customer:
Thank you for choosing our multifunction dryers, our clothes dryer is designed to
be simple and easy to use.
Before use: The precautions shown here are to prevent damage to and damage to you or others. Divided into "warning" and "attention" in two parts, both of which are important aspects of security, please be sure to comply.
Warning: Indicates misuse of content that may cause injury,
CAUTION: Indicates that incorrect use may cause damage to the product
B. Precautions when using
1. The main wind machine generates high temperature. Please be careful not to
block the air outlet of the main unit, otherwise the main unit will burn out.
2. the position of the air outlet can not be touched at close distance to prevent burns.
3. if the smell is odorous, burnt, please unplug the plug in time, contact the seller.
4. the total weight of clothes, the weight of water can not exceed 10kg, to prevent drying.
C. Technical Parameters
Voltage: 220V
Frequency: 50Hz
Power: 1 000W
Drying capacity:≤10KGS
Timing time: 3 hours
D. Electrical Schematic
Temperature fuse
DC fan
thermostat
Digital Tube
E. Installation
F. Internal Installation

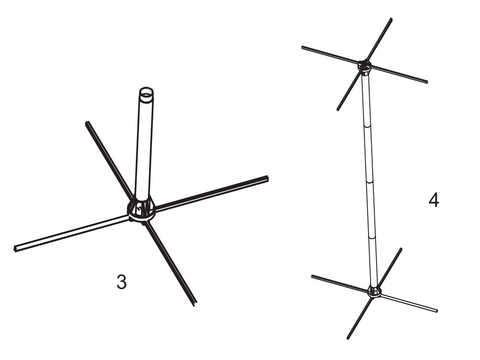

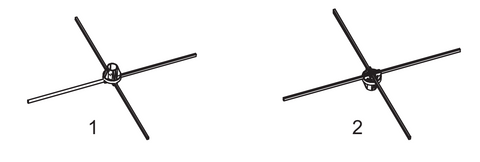

1. The first step of installation: Take out two pylons, one to be placed on top
and on to be mounted on top

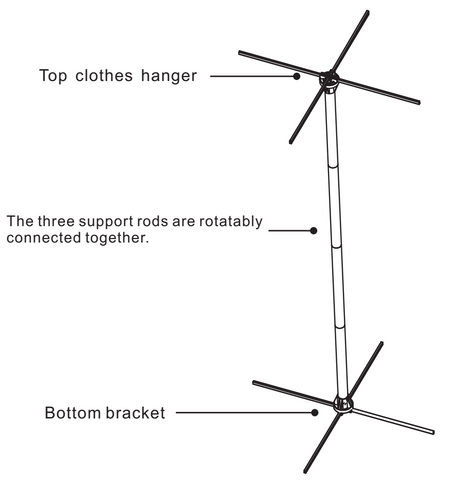

2. The second step of the installation: Install the rotation of one of the three support rods together.

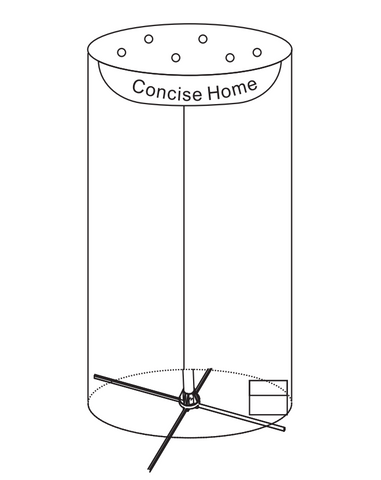

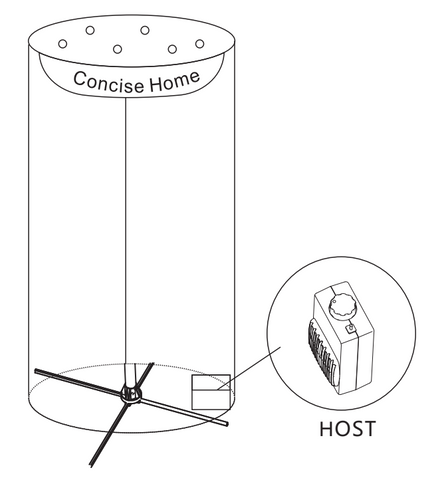

3.The third step is to install: Open the zipper of the cloth cover and place the cloth cover on the outside of the bracket. The host is then placed inside the cover. Place it as shown below.
G. Host operation

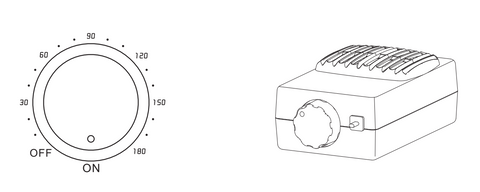

Plug in the plug and turn on the switch. You can adjust the timer
yourself according to the amount of clothes.
