Electric Clothes Dryer
Instruction Manual
Model: CH-10011/CH-0011/CH-20011
A. Manual
Please read this manual carefully before use
To Dear Customer:
Thank you for choosing our multifunction dryers, our clothes dryer is designed to
be simple and easy to use.
Before use: The precautions shown here are to prevent damage to and damage
to you or others. Divided into "warning" and "attention" in two parts, both of which are important aspects of security, please be sure to comply.
Warning: Indicates misuse of content that may cause injury,
CAUTION: Indicates that incorrect use may cause damage to the product
B. Precautions when using
1. The main wind machine generates high temperature. Please be careful not to
block the air outlet of the main unit, otherwise the main unit will burn out.
2. the position of the air outlet can not be touched at close distance to prevent
burns.
3. if the smell is odorous, burnt, please unplug the plug in time, contact the seller.
4. the total weight of clothes, the weight of water can not exceed 10kg, to
prevent drying.
C. Technical Parameters
Voltage: 110V/220V
Frequency: 50/60Hz
Power: 1000W
Drying capacity: ≤15KGS
Timing time: 5 hours

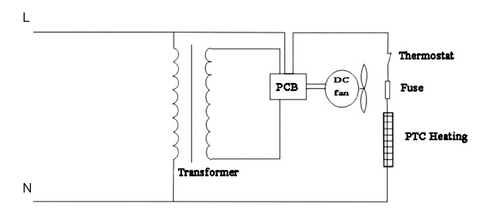

D. Electrical Schematic
Temperature fuse
DC fan
thermostat
Digital Tube

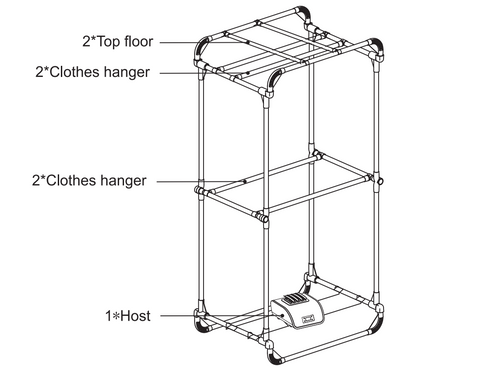

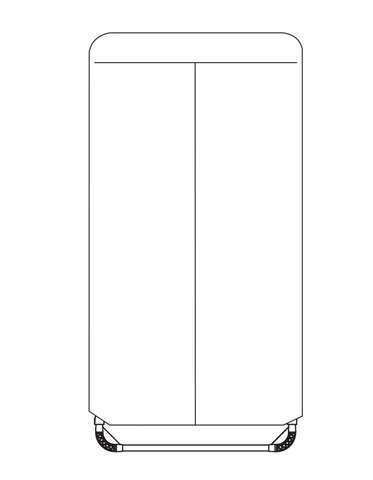

E. Installation

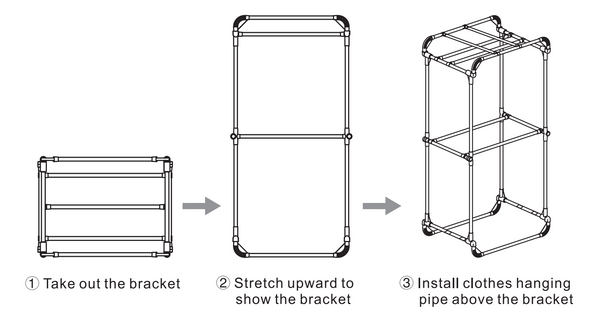

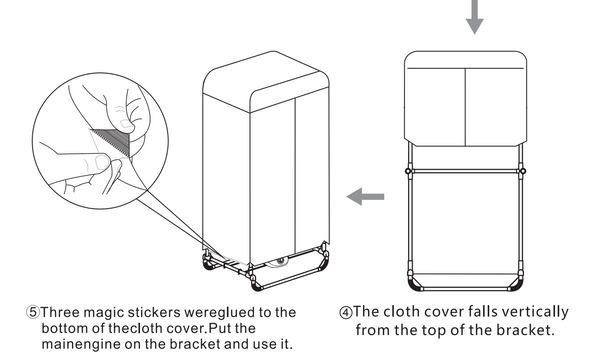

F. Installation Steps

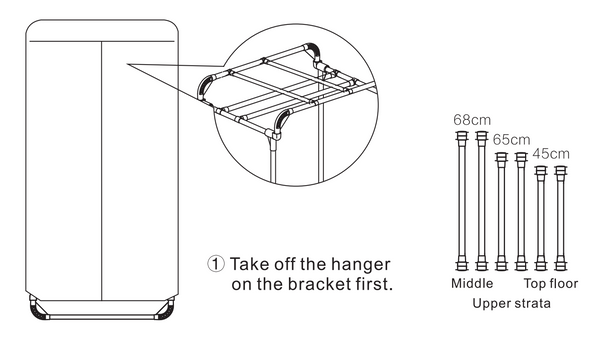

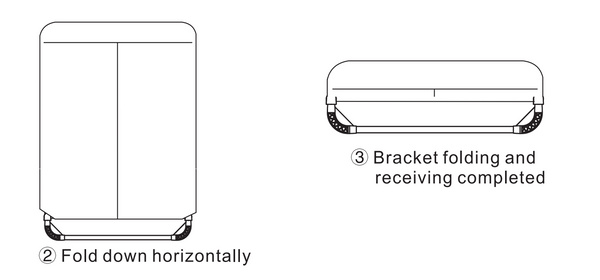

G. Storage Steps

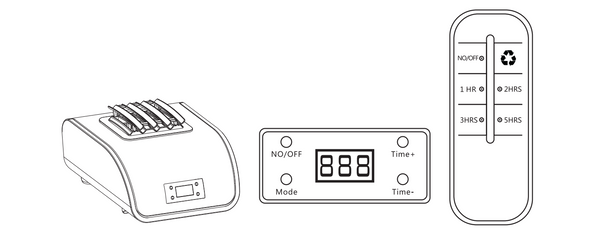

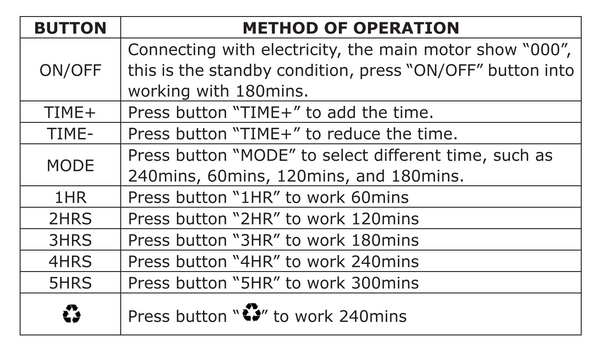

H. Operation Introduction
Remark: After turn off the motor, the heating work off, but the fan still work with 1 5-30seconds to cooling the heater.
G. Troubleshooting
Problem : Drying time too long (300minutes)
Possible Reason:
1. Clothes may be very thick.
2. Clothes may not have been dewatered.
3. Cover may not have been closed properly and hot air escaped.
Problem : Machine suddenly stopped working
Possible Reason:
1. Wind outlet or inlet blocked or covered by clothing or something else. Shut down protection process.
2. May have exceeded set time.
