[CH-0011 CH-10011] Concise Home Square Clothes Dryer with Remote Manual

Concise Home

Electric Clothes Dryer
Instruction Manual

CE Certificated Clothes Dryer

Model: CH-0011/CH10011

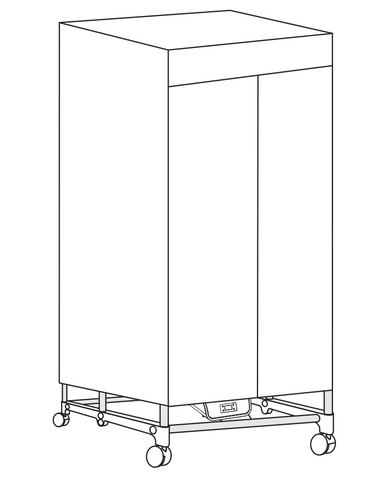

Concise Home CH-0011 Square Clothes Dryer Introduction1

A. Manual

Please read this manual carefully before use

To Dear Customer:
Thank you for choosing our multifunction dryers, our clothes dryer is designed to
be simple and easy to use.
Before use: The precautions shown here are to prevent damage to and damage to you or others. Divided into "warning" and "attention" in two parts, both of which are important aspects of security, please be sure to comply.
Warning: Indicates misuse of content that may cause injury,
CAUTION: Indicates that incorrect use may cause damage to the product

B. Caveat

> Please use a wet cloth to wipe away from the water source and the fire 1.5 meters or more when the clothes dryer is normal or still. Do not rinse directly with water.
> Cleaning: If the plug (metal part) is dusty, please wipe carefully.
> If the power cord, the plug is broken, or the external part is not tight Please do
not use, so as to avoid electric shock, short circuit, fire.
> Please do not connect 220V power supply, so as to avoid short circuit, electric
shock, fire. This product is only used for drying after washing clothes, please do not use it, so as not to damage the clothing.

> When disconnecting the power, be sure to hold the plug, do not pull the power
cord directly, so as to avoid electric shock, short circuit, fire.
> Dry clothes, please dehydrate the clothes or wring dry, so as not to cause a lot
of water droplets wet floor, and can improve the safety factor, shorten the
drying time, save energy.
> Do not touch the metal part of the outlet to avoid burns.
> Disconnect the power when the product is not in use.
> Please pay attention to the logo on the clothing before making sure that the clothes can use the clothes dryer and choose the appropriate drying temperature.
> The inclination of the dryer should not exceed 15 degrees.
> When using the dryer, keep the room ventilated.
> Please keep the principle when using the wall more than 1.5 meters.
> Please make sure that the temperature is more than 75 degrees and the dry weight is not more than 15KGS.
> If the power cord is broken, please find a professional maintenance worker or an authorized service person.
Please do not use this product directly in the bathroom or with a swimming pool.
At any time, please make sure adults are away from the dryer In adequate mobility, lack of self-control or lack of necessary experience or related knowledge Please do not use the dryer.

C. Technical Parameters

Voltage: 220V/110V
Frequency: 50Hz
Power: 1000W
Drying capacity:≤15KGS
Timing time: 12 hours

D. Electrical Schematic

Temperature fuse
DC fan
Digital Tube

Concise Home Electric Clothes Dryer

E. Installation

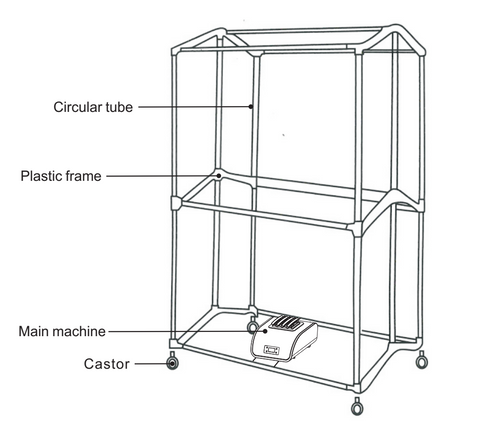

Concise Home CH-0011 Square Clothes Dryer Introduction2


Main machine* 1 set
Clothes cover* 1 PC
Circular tube* 20 PCS
Plastic frame* 6 PCS
Casters* 4 PCS
Telecontroller* 1 PC

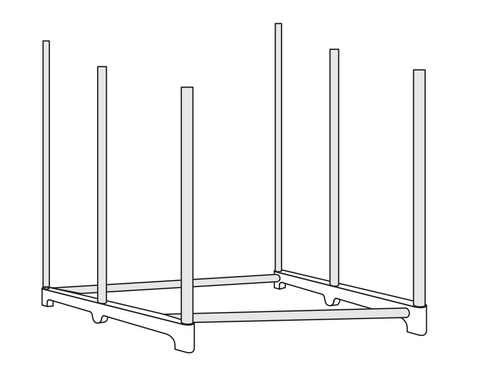

1. First, 8 circular tube are installed in 2 lower plastic frames.(Picture 1)

Concise Home CH-0011 Square Clothes Dryer Introduction3

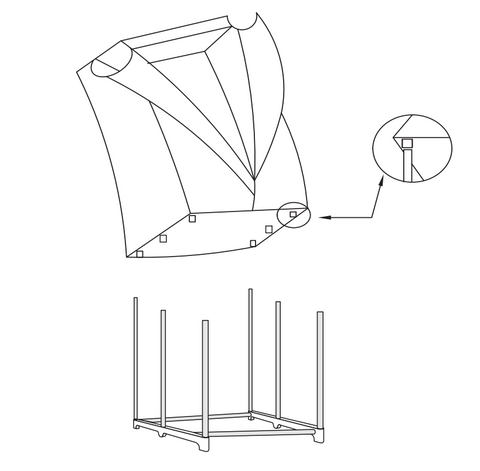

2. The cloth cover zipper is opened completely, and the 4 holes at the bottom are aligned with the insertion of the four rods of the vertical frame. (Picture 2)

Concise Home CH-0011 Square Clothes Dryer Introduction4

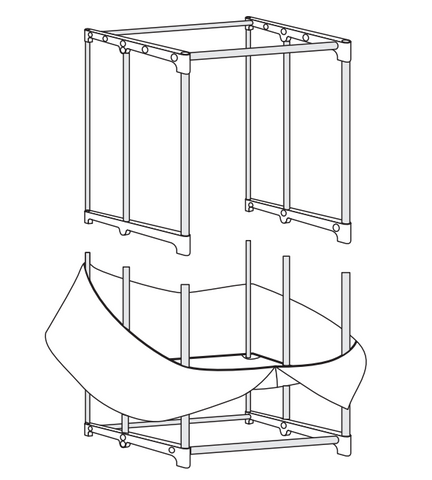

3. Connect the upper and middle frame with aluminum tube. (Picture 3)

Concise Home CH-0011 Square Clothes Dryer Introduction5

4. Place the cover the bracket and zip it up. Install castors, the main machine is placed on the main frame.

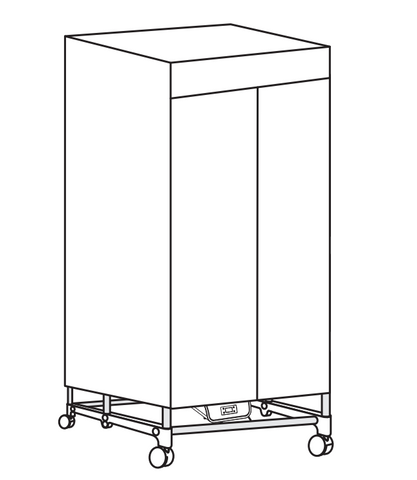

Concise Home CH-0011 Square Clothes Dryer Introduction6

Warning: Please follow the picture and step to complete the installation; never add and reduce any parts due installation, to avoid damage the product and happen dangerous; the wind outlet of motor should be align with outlet of cover, and let the wind outlet of motor is inside cover.

F. Instructions for use

Square Clothes Dryer Installation 5
Square Clothes Dryer Installation 6
Remark: After turn off the motor, the heating work off, but the fan still work with 15-30seconds to cooling the heater.

G. Troubleshooting

Problem : Drying time too long (300minutes)
Possible Reason:
1. Clothes may be very thick.
2. Clothes may not have been dewatered.
3. Cover may not have been closed properly and hot air escaped.

Problem : Machine suddenly stopped working
Possible Reason:
1. Wind outlet or inlet blocked or covered by clothing or something else. Shut down protection process.
2. May have exceeded set time.
